3 bits full adder contains,3 bits full adder contains ________ View Answer Explanation. Category: Electronics & Electrical MCQs. Sub Category: Digital Circuits Mcqs. 714. Related Questions. Q: The .
Test your knowledge of combinational circuits with multiple choice questions and answers. Find out the correct option for question 10: 3 .
Answer Explanation:- The correct answer is option D, which states that a 3-bit full adder contains 8 combinational inputs.-. This answer is incorrect because a 3-bit full adder .3 bits full adder containsAt each bit position, a full-adder is used, and it's carry output is copied into the input of the next full-adder, like this: This is a 3-bit ripple adder with a full adder at each bit position.Digital Circuits Questions and Answers – BCD Adder. This set of Digital Electronics/Circuits Multiple Choice Questions & Answers (MCQs) focuses on “BCD Adder”. 1. The decimal .(PDF) Design of MXA 3-bit full adder is designed to add three input bits, which means it has three combinational inputs. Each input represents a binary digit, either 0 or 1. The three inputs .3 Bit Adder Tutorial. The least significant bits (those on the right) are 0 and 1, giving a sum of 1 with no carry. There is no carry in from a previous stage. The next bits are 1 and 1 with no carry in, giving a sum of 0 and a .
An adder is a device that will add together two bits and give the result as the output. The bits being added together are called the "addends". Adders can be .The three input bits represent the numbers to be added, while the two output bits represent the sum and carry.To understand why a 3-bit full adder contains 8 combinational inputs, let's break down the internal structure of a full adder.Internal Structure of a Full Adder:A full adder is composed of two half adders and an OR gate. This comes about due to the carry out of bit position 1 into bit position 2.. Your arrangement of the three full-adders should look like the following: 3-bit adder using only FA. That diagram includes the .
A combinational circuit that adds three bits, generating a sum bit and a carry bit (which may be 0 or 1), is called a Full Adder. Figure 4.28 shows the block diagram of a Full Adder. The Full Adder adds three bits, x, y, and z, and generates a sum bit ( S) and a carry bit ( C ). The Full Adder is designed next. Prerequisite : Full Adder in Digital LogicGiven three inputs of Full Adder A, B,C-IN. The task is to implement the Full Adder circuit and Print output i.e sum and C-Out of three inputs. Full Adder : A Full Adder is a logical circuit that performs an addition operation on three one-bit binary numbers. The full adder produces a sum of the three .
0. Im trying to design a logic circuit for a 3 bit adder using 6 inputs, A2, A1, A0, B2, B1, B0 and 4 outputs, s0, s1, s2 and c (the carry out). I already have circuits for a half adder, full adder and a 2 bit adder. I thought I understood the concept behind it and iterated upon the 2 bit adder that I got working earlier but for some reason I'm .

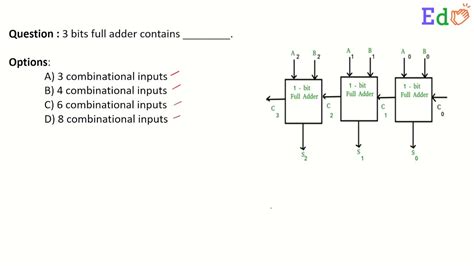

The Full Adder Circuit. A Full Adder can be built using two Half Adders circuits and an OR gate. The first Half Adder has two 1-bit binary inputs, which are A and B. It produces two outputs; Sum and Carry. The Sum output of the first Half Adder will be the first input of the second Half Adder. And the Carry output of the first Half Adder will .a) 3 combinational inputs b) 4 combinational inputs c) 6 combinational inputs d) 8 combinational inputs Answer: d Explanation: 3 bits full adder contains 23= 8 combinational inputs. View Answer. 7. The simplified expression of full adder carry is ____________. a) c = xy+xz+yz b) c = xy+xz c) c = xy+yz d) c = x+y+z Answer: a .
A Full Adder Circuit. The main difference between the Full Adder and the previous Half Adder is that a full adder has three inputs. The same two single bit data inputs A and B as before plus an additional Carry-in (C-in) input to receive the carry from a previous stage as shown below. Full Adder Block Diagram3 bits full adder contains If A, B and C are the inputs of a full adder then the sum is given by In this video, watch and learn the process of getting the Logical Equations of SUM and AUX of a 3-Bit Full Adder from its Truth Table. See also how to get t. In this video, watch and learn .3 bits full adder contains (PDF) Design of MXExplanation:A full adder is a combinational circuit that is used to perform addition of two binary numbers along with a carry input. It takes three inputs - two bits to be added (A and B) and a carry input (Cin). The output of a full adder consists of two bits - Sum (S) and Carry-out (Cout).A 3-bit full adder is a circuit that can perform addition of three 3-bit .
The minority charge concentration can be represented as Q = V 33V. If the voltage being applied is now 5V, find the diffusion capacitance. MCQs: 3 bits full adder contains ________ - Electronics & Electrical MCQs - Digital Circuits Mcqs.Create a model of a 3-bit adder and connect it to pushbuttons to obtain input from the user. In the following model, two numbers of three bits, A and B, are added to obtain the sum S. Combinational circuit of a 3-bit adder. Test Your Model. The user sends the digital inputs using pushbuttons. The final output can be displayed using LEDs.These full adders can also can be expanded to any number of bits space allows. As an example, here’s how to do an 8 bit adder. This is the same result as using the two 2-bit adders to make a 4-bit adder and then using two 4-bit adders to make an 8-bit adder or re-duplicating ladder logic and updating the numbers.
Full Adder: It is a combinational circuit used for the addition of binary numbers. It can add two one-bit numbers A and B, and carry C. The full adder is a three-input and two output combinational circuit. The basic block diagram for a Full Adder is as shown: A Full adder can be realized using two half adders as shown: A full adder can . Full Adder: To overcome the above limitation faced with Half adders, Full Adders are implemented. It is a arithmetic combinational logic circuit that performs addition of three single bits. It contains three inputs (A, B, C in) and produces two outputs (Sum and C out). Where, C in-> Carry In and C out-> Carry Out; Truth table of Full Adder:
A full adder adds three bits and outputs a sum and a carry. If you want to add three bits, you just connect them to the inputs x, y, and carry of the full adder. If for some reason there is a requirement that the carry input of the first full adder must be zero, then you leave that first full adder totally unconnected and connect to the three inputs of the second full adder.
The full adder is a logical circuit with 3 inputs and 2 outputs. It's built by combining two half-adders with a logical OR port, so we must first create our half adder. An half adder sums two bits, A and B, and gives two outputs, S and C. S is the sum and C is the carry. The half adder differs from the full adder because it doesn't care about .
